Building on the success of our Needle Grinder, Royal Master is proud to introduce The Cutting Machine. Like the Needle Grinder, this machine doesn’t need a complicated name to describe it—it’s simply a highly accurate abrasive cutoff system. With needle production at such a high pace, we needed an efficient next step!
What sets it apart from other machines is its dual-head linear motor design, enabling it to cut twice as many parts in a single cycle. The indexing linear motor boasts a resolution of 0.1 micron, while servo-driven wheels with acoustic emission monitoring ensure efficient, precise cuts. After cutting, parts are conveyed through a gauging station that provides real-time data feedback to the machine control for superior accuracy and process optimization.

An innovative abrasive cutting system that doubles production output by leveraging modern technology to reduce cycle times, tighten tolerances, and provide advanced control with gauging feedback for precise inspection of cut-to-length parts.

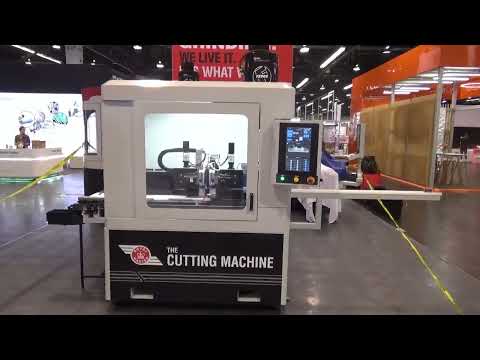

THE CUTTING MACHINE

The Cutting Machine redefines abrasive cutoff systems, delivering unmatched efficiency, precision, and performance.

Specifications
Dual-Head Cutting Platform:Doubles the output per cycle compared to traditional systems by using two cutting heads simultaneously.
High-Precision Linear Motor:Features 0.1-micron resolution for exceptional indexing accuracy.
Advanced Cutting Heads:Includes a fixed cutting head with a servo-driven spindle, 1mm abrasive cutting wheel, and quick-change tooling, alongside a linear motor-mounted guide head for precise cut length adjustment.
Granite Base for Stability:Built on Starrett granite to ensure rigidity and minimize vibrations, enhancing cutting precision.
Integrated Feeding Mechanism:Mounted to the linear motor for accurate material indexing through both cutting heads.
Automated Part Handling:Cut parts exit via a conveyor and pass through a gauging station for seamless handling.
100% Inspection with Feedback:Equipped with a Keyence measurement device that provides complete inspection and real-time feedback to the machine control.
Compact and Ergonomic Design:Developed as a standalone system with a space-saving footprint and user-friendly enclosure.
